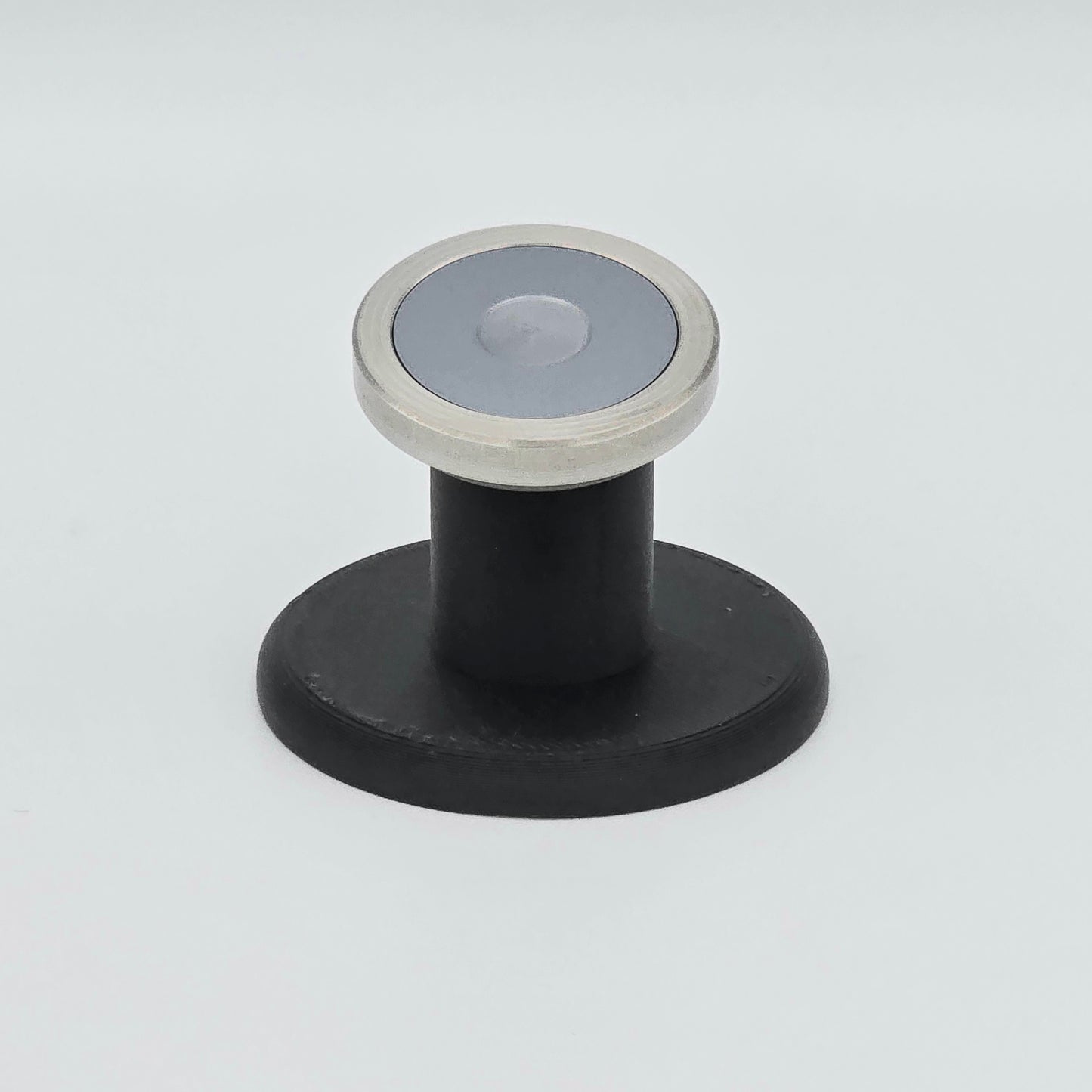

Bruker Compatible D2 / D6 Phaser Autosampler Sample Holders

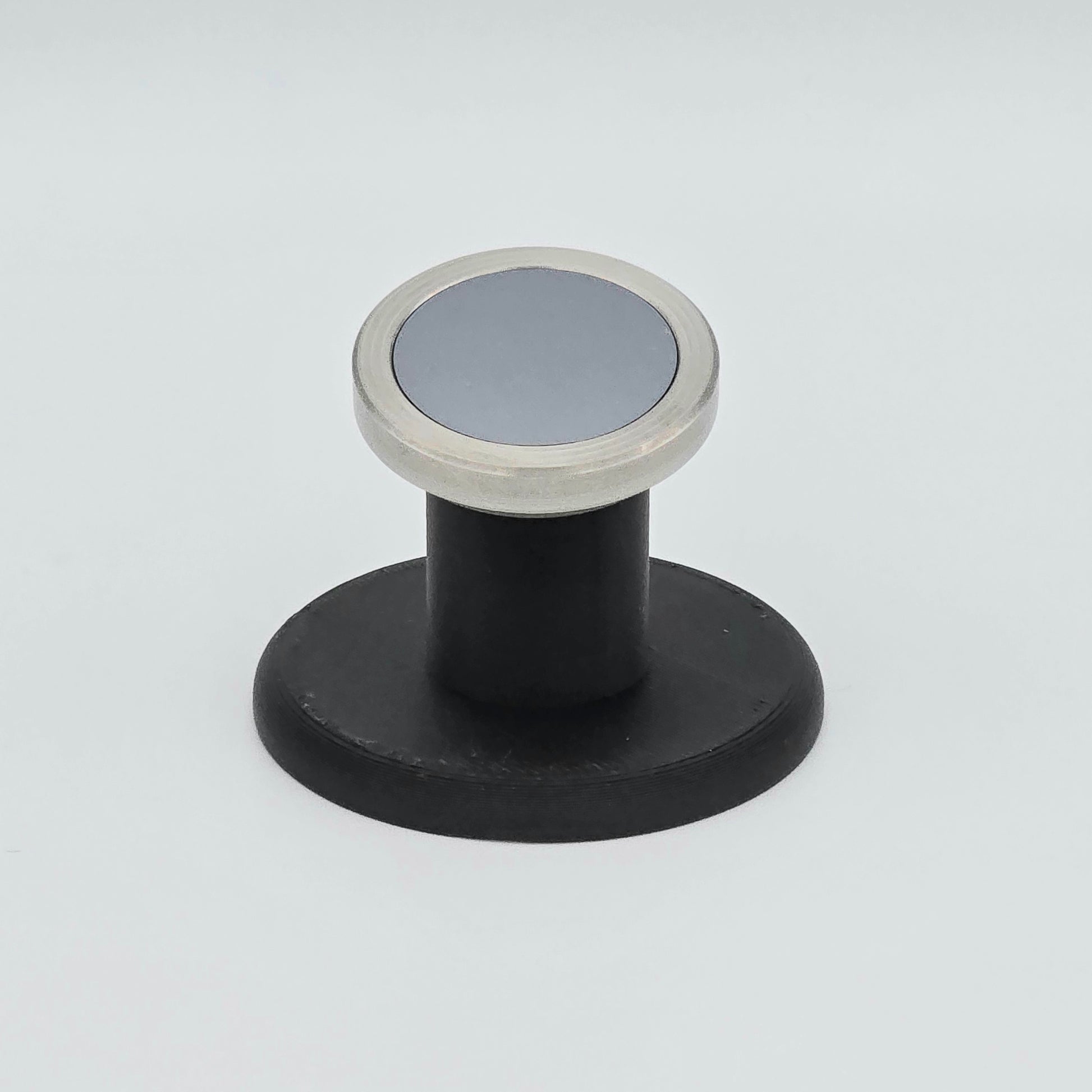

Custom-designed for compatibility with the Bruker D2 Phaser and D6 Phaser systems equipped with autosamplers, this holder includes a flush-mounted zero-background plate.

Zero-background holders are an ideal solution when only a small volume of sample material is available. We've used these for as little as 0.7mg of powder with excellent results.

The inserts are made from silicon wafers grown at a specific orientation such that no x-rays that strike the surface are diffracted into the detector. This allows us to analyze these small volumes without the complicating signature of the sample holder material itself. It's as if the powder is floating in free space.

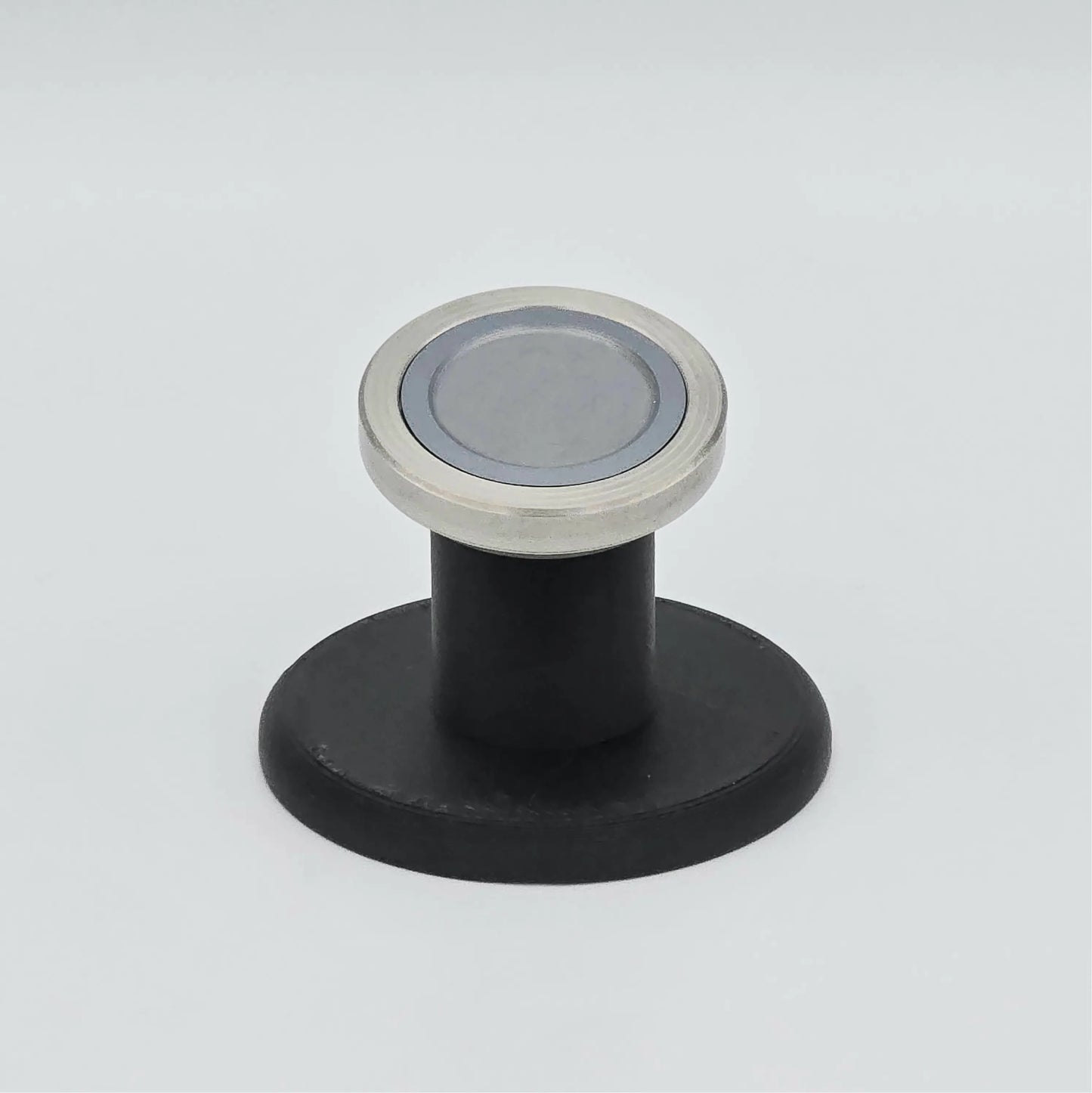

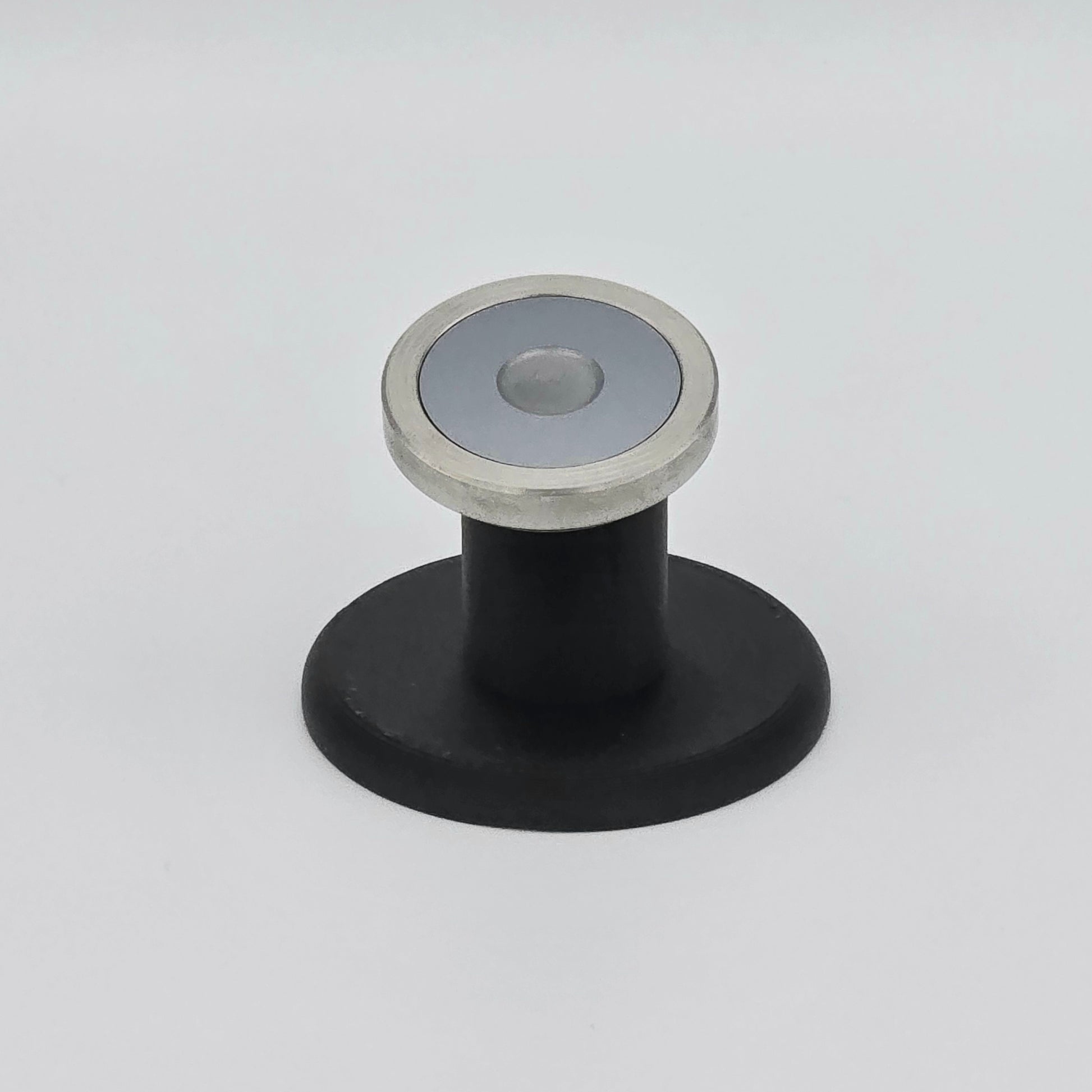

All plates are cut in-house at KSA.  For slightly larger sample volumes or applications that benefit from a fixed irradiated surface area, consider the optional wells which can be ground into the surface. We've accommodated requests for depths from 0.1 to 1mm and diameters from 5 to 20mm, but the most common are 10x0.5mm wells.
